Smooth Q

Move like movies



US$99 dollars, grab one.


Like our facebook page and send us message if you meet any trouble with the gimbal

Empowered by Newly Optimized Stabilizing System

Empowered by the 5th Gen. Instune Algorithms combined with world’s advanced electronic stabilizing system, the Smooth-Q has realized 40% improvement in its torque output, supporting a max. payload of 220g.

Greater in Power, Lighter in Weight

Powered by a built-in rechargeable battery, the Smooth-Q not only supports an ultra-long continuous runtime up to 12 hours, but further backs up for extended mission allowing connection with portable power source through USB port. Saving your time and load with a super compact construction of only 440g, with it, now you can really travel light without missing a single moment on the road.

Individualized Multi-color Design

Ergonomically constructed with special made high molecular compound material, Smooth-Q is offered in 4 fashionable color schemes – JET BLACK, GOLD, ROSE GOLD & SPACE GRAY -- to match your individual style.

Multiple Intelligent Controls

With the various innovative functions of the ZY Play, Smooth-Q not only perfects your footage with nice cinematic impact, but also realizes multiple smart controls. By activating the Object Tracking function, the gimbal and phone camera will be configured to follow and focus the target automatically, so now you can record any live moment while also taking part in it. In addition, it also supports time lapse, slow motion, long exposure, multi-style filters and more to inspire your creativity.

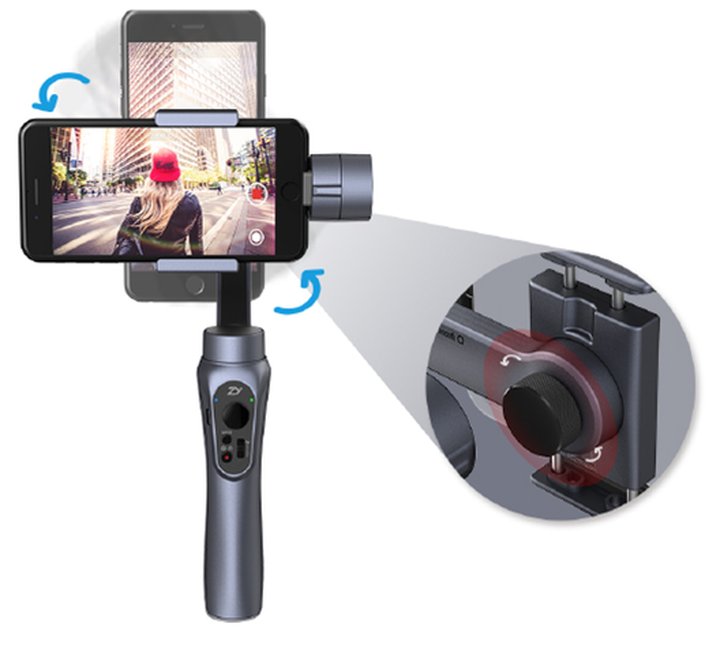

Easy Switch with 2-way Mounting Clamp

In response to various application demands of different users and in purpose of maximizing comfort and ease in use, Smooth-Q is innovatively designed with a 2-way mobile clamp. Simply loosen the fixing thumb screw, turn the mobile clamp by 90° to make a quick vertical/horizontal switch of the smartphone, it’s time to say goodbye to all pain-taking struggles with the turning of your camera.

Universal Mounting Port to Enhance Creativity

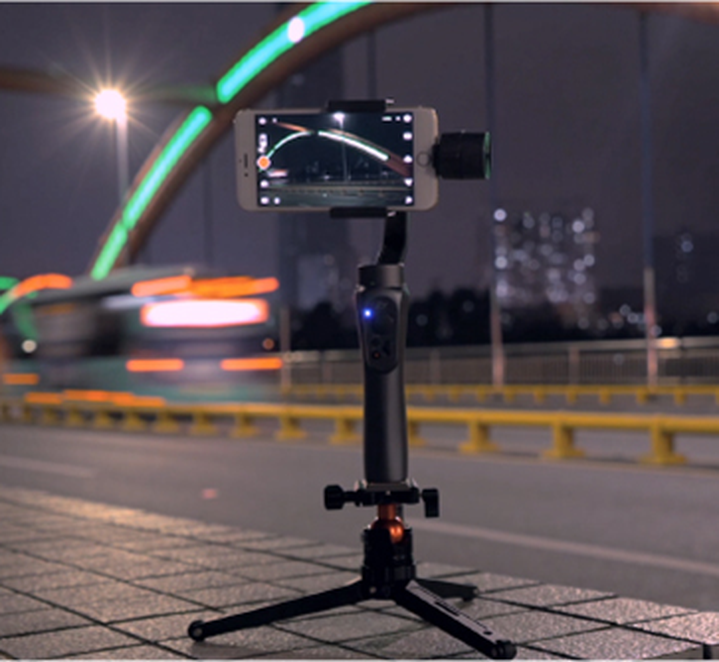

Equipped with an universal 1/4” threaded hole at the bottom, Smooth-Q can be mounted to various photography equipment and apparatus, such as tripod mount, extension rod or suction cup, so you not only can produce rocker-arm footage, but can also make cool time lapse footage with ideal view while it operates with your hands free!

Manual Zooming for Freer Capture

By connecting to the dedicated mobile APP, ZY Play, via Bluetooth, Smooth-Q allows instant zooming control of the camera right through the stabilizer. With a single push or pull of the switch, you can focus and capture the moment more freely.

Enhanced Motor Torque with Greater Applicability

Smooth-Q not only can support PLUS-size smartphones, but further allows external add-ons, such as lenses, light-compensating lamp, and microphone etc, to support a wider range of applications.

Easy Mounting with One-step Balancing

Featured by the unique telescopic shaft design, Smooth-Q allows one-step easy balance adjustment of the mounted handset, you will no time in capturing your next shot!

Tech Specs
Item Min. Standard Max. Remark
Operation Voltage 6.8V 8.4V 12.6V
Operation Current 80mA 110mA 1500mA
Charging Voltage   5V
Charging Current   1500mA
Output Voltage   5V
Output Current   2000mA
Following Deviation in Static State ±0.01°   ±0.04°
Following Deviation in Motion State ±0.05°   ±0.3°
Tilt Mechanical Range   320°
Roll Mechanical Range   320°
Pan Mechanical Range   360°   Unlimited
Controllable Tilt Angle -135°   +185°
Controllable Roll Angle -30°   +30°
Operation Temperature   360°   Unlimited
Operation Temperature -10°C 25°C 45°C
Battery Runtime   12h   Balanced center of gravity
Charging Time   2.5h
Valid Payload 75g   200g
Horizontal Arm Adjustment Range     15mm
Mounting Clamp Supporting Range 58mm   85mm
Compatible Models Smartphones with sizes within 6.0", GoPro Hero3/4/5
Packing List
Name & Spec. Qty.
Gimbal Stabilizer 1
Micro USB Cable 1
User Guide 1
Storage Bag 1
Packing Specifications
Item Dim./Weight Remark
Product Dimension 118*105*285 W*D*H
Package Size 310*150*60 L*W*H
Carton Size (Dedicated) 350*340*340 L*W*H
Product Net Weight 440g/unit
Gross Weight (including package) 1000g/unit
Packing Weight 13kg/Cart 10unit/carton

$139 USD

NO! $99 USD

Grab one now!

$99 USD now

Like our facebook page and send us message if you meet any trouble with the gimbal
