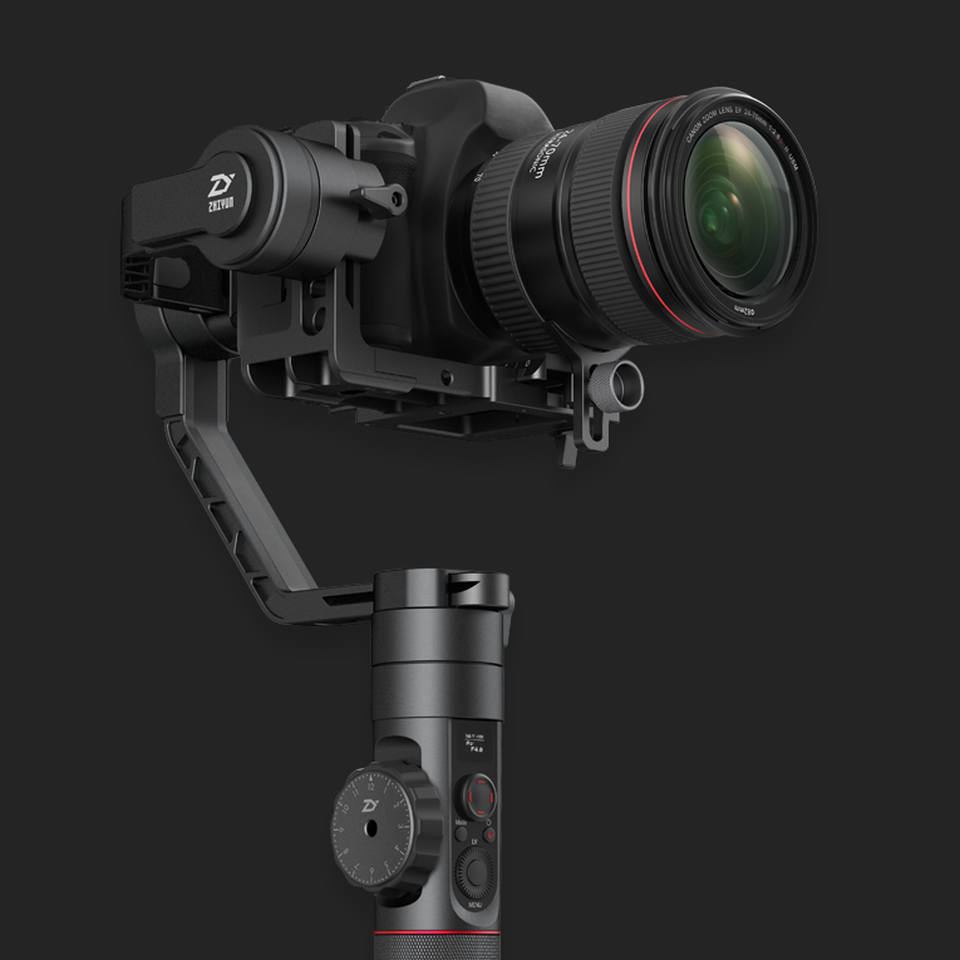

Crane 2
Like our page, keep updated
Follow our page to keep updated. Send us message on facebook if you have any problems, we are there to help.

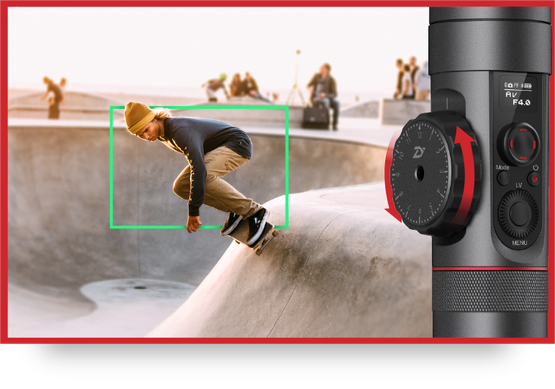

Real Time Follow Focus
Integrated with an unprecedented follow focus wheel on the body, Crane 2 allows ±0.02° precision real time focus control through camera cable connection, so that you can always keep your subject in focus while moving, setting free your camera for more dedicated task.
Real-time Follow Focus,Tactile Focus Wheel, 3 Levels of Focus Adjustment

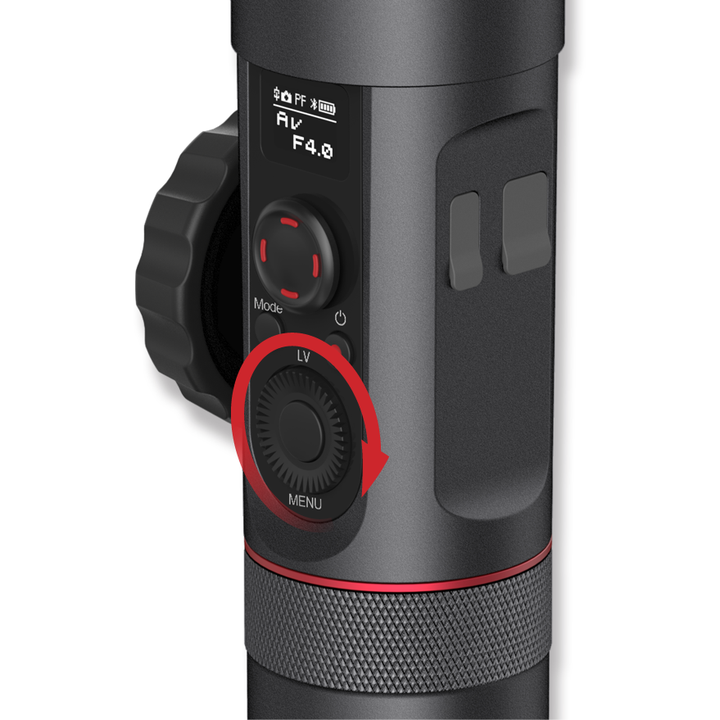

Innovative Quick Control Dial Design
The quick control dial on the control panel is like an integrated extension of your camera. You can either press or rotate the dial to make various camera parameter settings such as TV, AV, ISO and EV, giving you seamless camera control independently from any software applications.
Quick Control Dial; Instant Parameter Settings;One-handed Operation Facilitation
- Quick Control Dial
- Instant Parameter Settings
- One-handed Operation Facilitation
3.2KG Max. Payload
Empowered by the 6th Gen. Instune Algorithm System which realizes 50% increase in motor torque and 20% improvement in noise reduction, the Crane 2 sets up a new benchmark for the industry supporting a max. payload of 3.2kg, mountable by all models of DSLR and mirrorless camera on the market.
Work perfectly with:
- Canon EOS Series
- Panasonic LUMIX Series
- Sony ILCE Series、a Series
- Nikon D Series

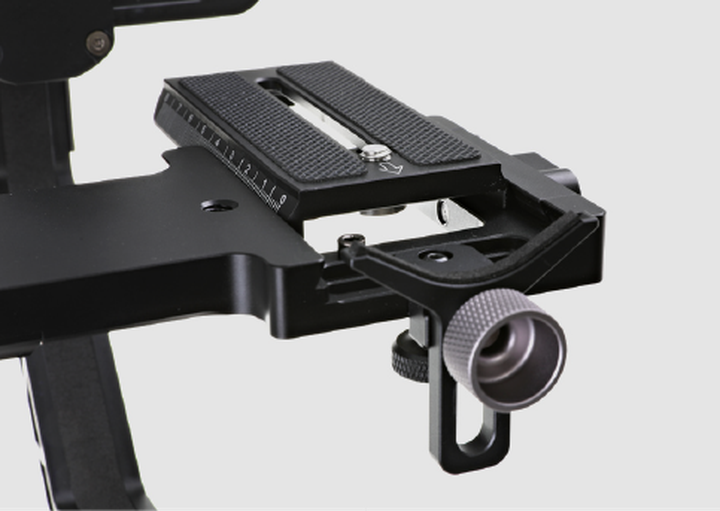

Quick Release Plate by MANFROTTO Standard

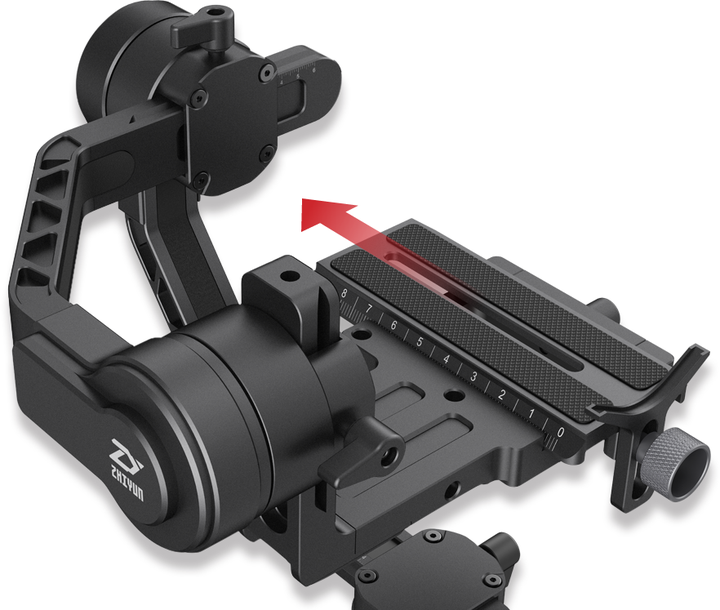

Crane 2 comes standard with a durable quick release plate that meets the MANFROTTO standard, which allows you to mount your camera quickly to the stabilizer or tripod nice and tight simply with a sliding of the plate, sparing you a lot of time of painstaking reassembling.

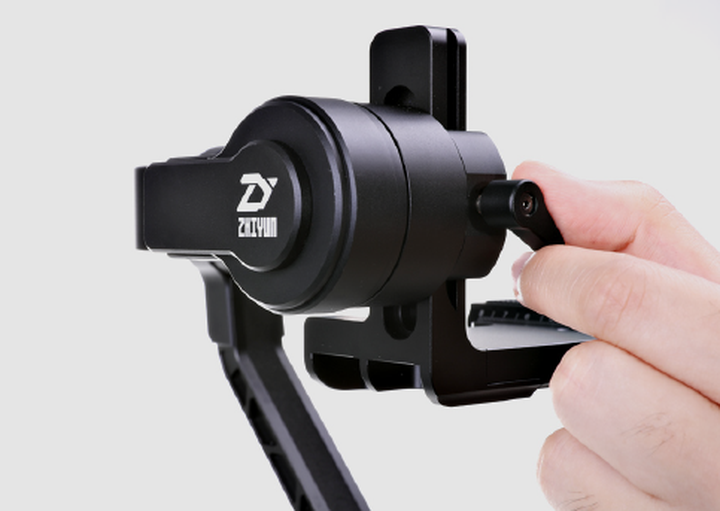

60 Sec. Balance Adjustment with Unique Thumbscrews
Thumbscrew for Quicker Balance Adjustment Designed with easy-to-use thumbscrews and the unique quick release plate, you can mount, dismount and balance your camera to get ready for shooting only within 60 seconds with no need of a screwdriver. Start your shooting at anywhere, anytime.

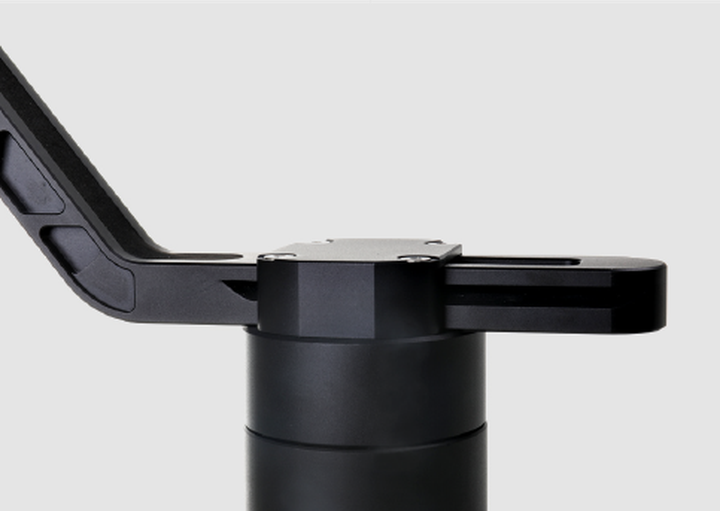

Unique Dovetail Slot Design
Featuring the unique dovetail slot design, CRANE 2 enables high-precision balance adjustment for faster and more convenient camera mounting
Instant Precise Attitude Compensation
Integrated with the pioneering 32-bit x 3 high-speed MCU parallel control technology which realizes 100% improvement in respond speed, CRANE 2 gets high above the industry standard with its cutting-edge attitude compensation system and unparalleled anti-shaking stabilizing performance.

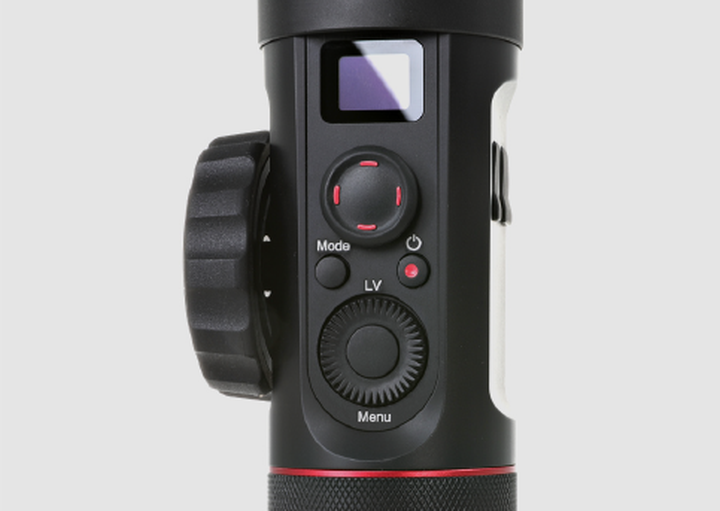

Intuitive OLED Display
The intuitive interface design help you easily identify the connection status, battery level, control mode and multiple camera params, giving you full control over every detail.
18 Hour Runtime for Longtime Task
Three high energy efficiency 18650 rechargeable batteries give the Crane 2 maximum runtime of 18 hours with 6000mAh capacity. Meanwhile, the Crane 2 allows convenient real-time charging to the camera even when your camera is without batteries.
- 6000mAh Battery Capacity
- 18Hours Continuous Runtime
Complete Kits with Elaborate Details
Crane 2 comes standard with a comprehensive accessories kit, including camera control cables to connect with various brand cameras, an Aluminum alloy tripod, an EVA carrying bag, as well as a MANFROTTO standard quick release plate that allows quick camera installation to the stabilizer or tripod within seconds, ideal for videographers stepping up their game.
- Standard Quick Release Plate;
- 60 Sec. Balance Adjustment;
- Aluminum Alloy Tripod
Tech Specs. |
||||
|---|---|---|---|---|
| Item | Min. | Standard | Max. | Remark |
| Operation Voltage | 9.8V | 11.1V | 12.6V | |
| Operation Current | 110mA | 6000mA | ||
| Charging Voltage | ||||
| Charging Current | ||||
| USB Output Voltage | 5V | |||
| USB Output Current | 1A | |||
| Camera Charging Output Voltage | 8V | |||
| Camera Charging Output Current | 2A | |||
| Following Deviation in Static State | ±0.01° | ±0.3° | ||
| Following Deviation in Motion State | ±0.05° | ±0.1° | ||
| Tilt Angle Range | -135° | +185 | ||
| Roll Angle Range | 360° | Unlimited Rot. | ||
| Pan Angle Range | 360° | Unlimited Rot. | ||
| Controllable Tilt Angle | ||||
| Controllable Roll Angle | ||||
| Controllable Pan Angle | ||||
| Operation Temperature | -10°C | 25°C | 45°C | |
| Battery Runtime | 12h | 18h | Balanced center of gravity | |
| Charging Time | ||||
| Valid Payload | 500g | 3200g | ||
| Compatible Cameras | Canon EOS Series;Panasonic LUMIX Series; Sony ILCE Series、a Series; Nikon D Series and other cameras weighing less than 3.2kg | |||
Packing Specifications |
||
|---|---|---|
| Item | Dim./Weight | Remark |
| Product Dimension | 210*118*450mm | W*D*H |
| Package Size | 502*141*270mm | L*W*H |
| Carton Size (Dedicated) | 552*614*320mm | L*W*H |
| Product Net Weight | 1250g/Unit | |
| Gross Weight (including package) | 3.7kg/Unit | |
| Packing Weight | 17.2kg/Carton | 4 Units/Carton |
Packing List |
|
|---|---|
| Name & Spec. | Qty. |
| Gimbal Stabilizer | 1 |
| Tripod | 1 |
| 18650 x3 Battery Charger | 1 |
| 18650 Li-ion Batteries | 3 |
| Micro to Micro USB Cable | 1 |
| Micro to Mini USB Cable | 1 |
| Sony Camera Control/Charging Cable | 1 |
| Panasonic Camera Control Cable | 1 |
| Micro USB Cable | 1 |
| User Manual | 1 |
| Shoulder stripe | 1 |
| Carrying Case | 1 |
